How do I authenticate when setting up calls through a CM SIP Trunk?

Goal

Describe the possible authentication options supported by the CM Voice platform.

Product

  • Voice

Steps

The general authentication flow look like this.

  • An User Agent Client (UAC) sends a SIP message to an User Agent Server (UAS)

  • The UAS responds back with a 401 challenge response in case of SIP REGISTER or a 407 Authenication Required in case of a SIP INVITE sent without using SIP REGISTER

  • An UAC uses data in the 4xx challenge response to encrypt his or her identity credentials (e.g. telephone password)

  • The UAC resends the SIP message with the encrypted credentials.

The CM Voice platform supports three authentication options.

  1. SIP REGISTER

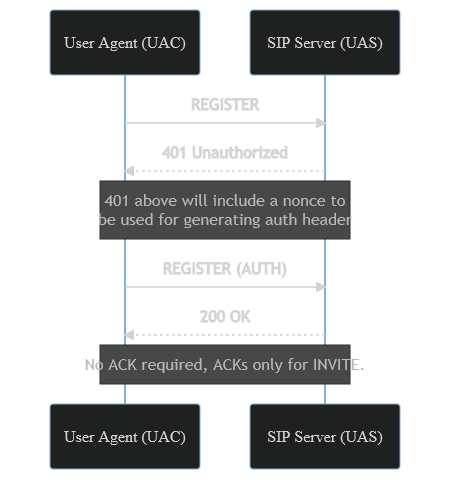

    Authentication flow schematic:

  2. SIP INVITE incl. DIGEST Authentication (username + password)

  3. IP based authentication/Trusted IP

    This will be only offered as last resort solution. Please contact [email protected] or your account manager we offer the possibility of IP based authentication. This is ONLY possible for a single SIP account using the same SIP IP endpoint. An IP endpoint set to trusted cannot be used for another SIP account.
