Conversational Router in Web Conversations

Web Conversations currently exposes 3 different endpoints for the Conversation Router to send messages, handovers and events to a specific web chat user.

Endpoints

https://cxcomlive-webconvwa-weu.azurewebsites.net

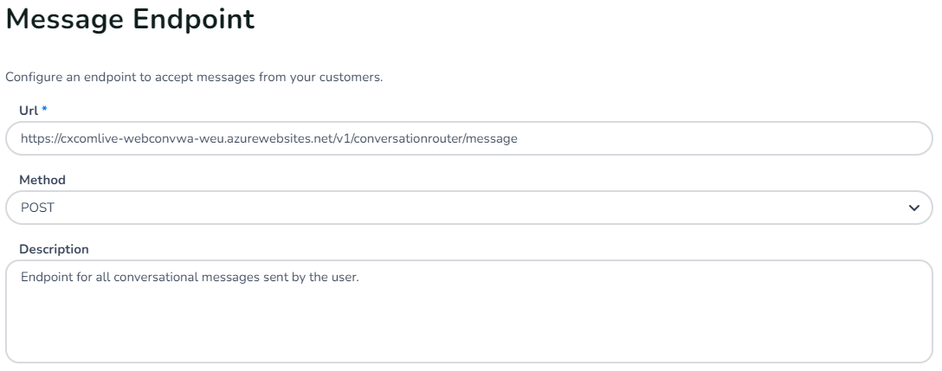

Message

Send a message to a Web Conversations chat.

METHOD : POST
ENDPOINT: /v1/conversationalrouter/message
BODY : TwoWay Format(https://developers.cm.com/mobile-service-cloud/docs/twoway-format)

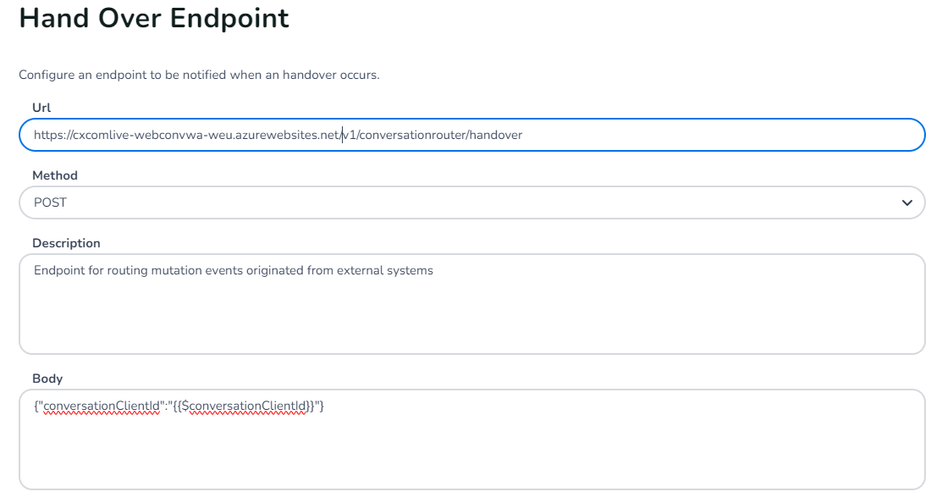

Handover

Notify Web Conversations a handover has occurred. This way the UI can adapt to the livechat flow.

METHOD : POST
ENDPOINT: /v1/conversationalrouter/message
BODY : TwoWay Format(https://developers.cm.com/mobile-service-cloud/docs/twoway-format)

Body

{"conversationClientId":"{{$conversationClientId}}"}

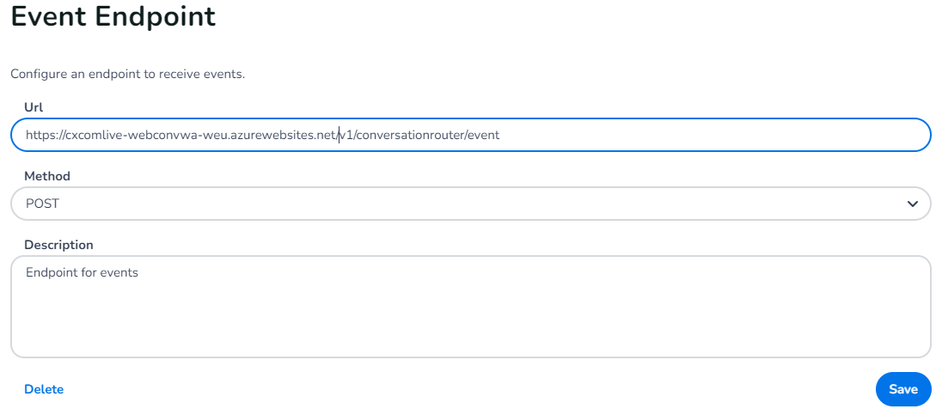

METHOD : POST
ENDPOINT: /v1/conversationalrouter/event
BODY : TwoWay Format Event(https://developers.cm.com/mobile-service-cloud/docs/twoway-format#event-types)

Notify Web Conversations an event occurred
