Analytics API Reference

Authentication

All public endpoints require authentication via a product token. Requests must include the token in the X-CM-PRODUCTTOKEN header:

X-CM-PRODUCTTOKEN: <product-token>

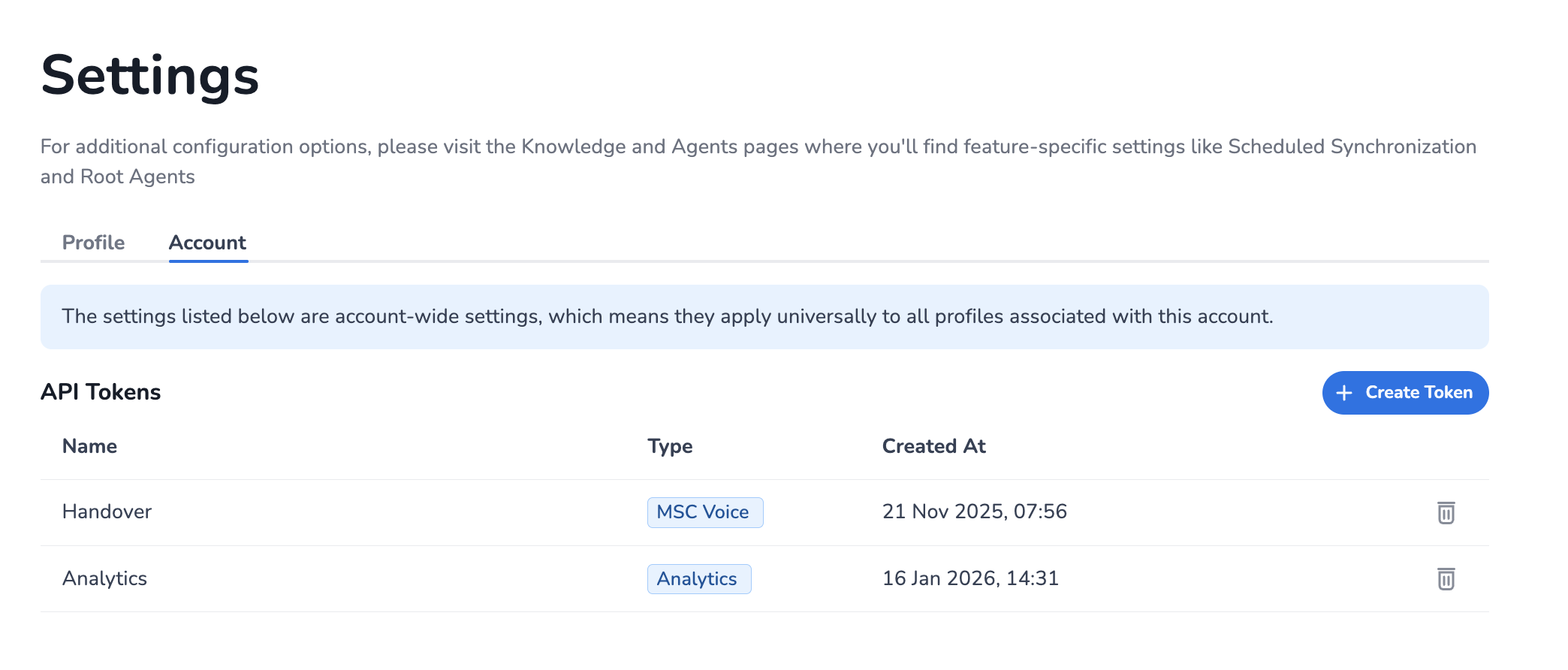

You can find your token for the Analytics endpoints by opening your HALO studio, selecting ‘Settings’ at the bottom left, and selecting ‘Account’. You will see this view:

Here, you can click on ‘Create Token’, create a name for your Token, and select the ‘Analytics’ type. Then, you will be given the Token you can use for the API. Please store the token in a secured location.

Base URL

https://api.cm.com/halo

Swagger: https://api.cm.com/halo/analytics/docs

Breaking Changes

The metrics, resources and get_conversation endpoints no longer use the envelope wrapper. Previously, responses were wrapped in:

JSON

{
  "data": [],
  "meta": {
    "total_count": 0
  },
  "pagination": {
    "page_size": 0,
    "has_next": false,
    "has_previous": false,
    "next_cursor": null,
    "previous_cursor": null
  }
}

These endpoints now return the response body directly without the data, meta, and pagination wrapper.

The get_conversations endpoint is not affected by this change — it uses the envelope format with data, meta, and pagination fields.

Analytics v1

GET `/analytics/v1/accounts/{account_id}/metrics`

Retrieve aggregated conversation metrics for an account within a date range, optionally filtered by profile.

Path Parameters

Parameter	Type	Required	Description
`account_id`	UUID	Yes	The account ID

Query Parameters

Parameter	Type	Required	Default	Description
`start_date`	ISO 8601 datetime	No	30 days ago	Start of the date range (UTC)
`end_date`	ISO 8601 datetime	No	Now	End of the date range (UTC)
`profile_id`	integer	No	—	Filter metrics to a specific profile. Returns 404 if not found

Validation

start_date must be before end_date. Returns 422 Unprocessable Entity if violated.
If profile_id is provided, the profile must exist. Returns 404 Not Found otherwise.

Response `200 OK`

JSON

{
  "total_conversations_count": 1520,
  "total_average_conversation_duration_seconds": 145,
  "total_average_interactions_per_conversation": 6.3,
  "average_recognition_rate": 0.87,
  "product_metrics": [
    {
      "product": "support-chat",
      "conversations_count": 980,
      "average_conversation_duration_seconds": 130,
      "average_interactions_per_conversation": 5.8,
      "average_recognition_rate": 0.91
    }
  ]
}

Field	Type	Description
`total_conversations_count`	integer	Total number of conversations in the date range
`total_average_conversation_duration_seconds`	integer	Average conversation duration across all conversations (in seconds)
`total_average_interactions_per_conversation`	float	Average number of interactions (messages) per conversation
`average_recognition_rate`	float or null	Average recognition rate across conversations (0.0–1.0)
`product_metrics`	array or null	Per-product breakdown (omitted if no products)

Each entry in product_metrics:

Field	Type	Description
`product`	string	Product name
`conversations_count`	integer	Number of conversations for this product
`average_conversation_duration_seconds`	integer	Average duration for this product (seconds)
`average_interactions_per_conversation`	float	Average interactions per conversation
`average_recognition_rate`	float or null	Average recognition rate for this product

Error Responses

Status	Description
400	Invalid query parameters
404	Account or profile not found
422	`start_date` is not before `end_date`

Analytics v2

GET `/analytics/v2/accounts/{account_id}/conversations`

List conversations for a profile with filtering, sorting, and pagination. Returns a paginated list of conversation overviews along with available filter options for the current date range.

Path Parameters

Parameter	Type	Required	Description
`account_id`	UUID	Yes	The account ID

Query Parameters

Parameter	Type	Required	Default	Description
`profile_id`	integer	No	—	The profile to list conversations for
`duration_filter_in_days`	integer	No	—	Number of days to look back from now. Overrides `from_date`/`until_date` if provided
`from_date`	ISO 8601 datetime	No	7 days ago	Start of the date range (UTC)
`until_date`	ISO 8601 datetime	No	Now	End of the date range (UTC)
`languages`	string (CSV)	No	—	Filter by languages (e.g. `en,nl`)
`channels`	string (CSV)	No	—	Filter by channels
`products`	string (CSV)	No	—	Filter by products
`resolutions`	string (CSV)	No	—	Filter by resolutions
`feedbacks`	string (CSV)	No	—	Filter by feedback values
`search_query`	string	No	—	Full-text search within conversation content
`min_recognition_rate_percentage`	float	No	—	Minimum recognition rate filter (0–100)
`max_recognition_rate_percentage`	float	No	—	Maximum recognition rate filter (0–100)
`agent_ids`	string (CSV)	No	—	Filter by agent IDs (comma-separated integers)
`tool_ids`	string (CSV)	No	—	Filter by tool IDs (comma-separated integers)
`topic_ids`	string (CSV)	No	—	Filter by topic IDs (comma-separated integers, use `-1` for pending)
`has_feedback`	boolean	No	—	`true` = only with feedback, `false` = only without
`page_size`	integer	No	1000	Number of conversations per page (clamped to 1–1000)
`page_index`	integer	No	0	0-based page index
`sort_order`	string	No	`desc`	Sort order: `asc` or `desc`
`sort_by`	string	No	`started`	Sort field: `started`, `ended`, or `recognition_rate`

Date Range Behavior

If duration_filter_in_days is provided, it takes precedence: from_date = now minus N days, until_date = now.
If neither duration_filter_in_days nor from_date/until_date are provided, defaults to the last 7 days.
If only from_date or until_date is provided, the other remains open-ended.

This endpoint uses offset-based pagination via page_index and page_size query parameters. The response includes pagination metadata in nested meta and pagination objects:

Field	Type	Description
`meta.total_count`	integer	Total number of conversations matching the filters
`pagination.page_size`	integer	Requested page size
`pagination.has_next`	boolean	Whether there is a next page
`pagination.has_previous`	boolean	Whether there is a previous page
`pagination.next_cursor`	string or null	Reserved for cursor-based pagination (currently `null`)
`pagination.previous_cursor`	string or null	Reserved for cursor-based pagination (currently `null`)

To iterate through pages, increment page_index and check pagination.has_next.

Response `200 OK`

JSON

{
  "data": [],
  "possible_language_filters": ["en", "nl", "de"],
  "possible_product_filters": ["support-chat", "sales-chat"],
  "possible_channel_filters": ["web", "whatsapp"],
  "meta": {
    "total_count": 342
  },
  "pagination": {
    "page_size": 100,
    "has_next": true,
    "has_previous": false,
    "next_cursor": null,
    "previous_cursor": null
  }
}

Field	Type	Description
`data`	array	List of `ConversationOverview` objects (see below)
`possible_language_filters`	string array	All distinct languages available in the current date range
`possible_product_filters`	string array	All distinct products available in the current date range
`possible_channel_filters`	string array	All distinct channels available in the current date range
`meta`	object	Response metadata
`meta.total_count`	integer	Total number of conversations matching the filters
`pagination`	object	Pagination details
`pagination.page_size`	integer	Requested page size
`pagination.has_next`	boolean	Whether there is a next page
`pagination.has_previous`	boolean	Whether there is a previous page
`pagination.next_cursor`	string or null	Reserved for future cursor-based pagination
`pagination.previous_cursor`	string or null	Reserved for future cursor-based pagination

ConversationOverview Object

Each item in data represents a summary of a single conversation.

Field	Type	Description
`conversation_id`	UUID	Unique conversation identifier
`profile_id`	integer or null	Profile the conversation belongs to
`created`	datetime or null	When the conversation record was created
`started`	datetime or null	When the first message was exchanged
`ended`	datetime or null	When the conversation ended
`first_user_message`	string or null	The first message sent by the user
`most_common_language`	string or null	Dominant language (2-character ISO code)
`most_common_origin`	string or null	Most common origin/source
`most_common_channel`	string or null	Most common channel (e.g. `web`, `whatsapp`)
`most_common_product`	string or null	Most common product
`environment`	string or null	Environment the conversation ran in (e.g. `production`, `staging`)
`matched_items`	integer	Number of user messages that were successfully recognized
`total_items`	integer	Total number of user messages
`recognition_rate`	float	Ratio of matched to total items (0.0–1.0)
`visited_agent_ids`	integer array	IDs of agents that handled the conversation
`visited_tool_ids`	integer array	IDs of tools that were invoked during the conversation
`resolution`	string or null	Resolution status (see https://cmcom.atlassian.net/wiki/spaces/KCENTER/pages/edit-v2/2925264909#Resolutions )
`resolution_reasoning`	string or null	AI-generated reasoning for the resolution classification
`summary`	string or null	AI-generated conversation summary
`feedback`	string	User feedback rating (see https://cmcom.atlassian.net/wiki/spaces/KCENTER/pages/edit-v2/2925264909#Feedback)
`feedback_comment`	string or null	Free-text comment left with feedback
`topic`	object or null	Assigned topic (see https://cmcom.atlassian.net/wiki/spaces/KCENTER/pages/edit-v2/2925264909#Topics)
`subtopic`	object or null	Assigned subtopic (see https://cmcom.atlassian.net/wiki/spaces/KCENTER/pages/edit-v2/2925264909#Subtopics)
`manual_resolution`	object or null	Manual resolution override (see https://cmcom.atlassian.net/wiki/spaces/KCENTER/pages/edit-v2/2925264909#Manual-Resolutions)
`external_handover`	object or null	Handover metadata if conversation was transferred to a human agent
`messages`	array	Simplified message list (see https://cmcom.atlassian.net/wiki/spaces/KCENTER/pages/edit-v2/2925264909#Messages)

GET `/analytics/v2/accounts/{account_id}/conversations/{conversation_id}`

Retrieve a single conversation by ID with full calculated analytics, including detailed message history.

Path Parameters

Parameter	Type	Required	Description
`account_id`	UUID	Yes	The account ID
`conversation_id`	UUID	Yes	The conversation ID

Response `200 OK`

JSON

{
  "most_common_channel": "web",
  "most_common_language": "en",
  "most_common_origin": "website",
  "most_common_product": "support-chat",
  "started": "2025-01-15T10:30:00Z",
  "ended": "2025-01-15T10:45:00Z",
  "total_user_items": 8,
  "num_matched_user_items": 7,
  "recognition_rate": 0.875,
  "messages": [],
  "resolution": "RESOLUTION_SUCCESSFUL",
  "resolution_reasoning": "The user's question was answered completely.",
  "summary": "User asked about order status and received tracking info.",
  "feedback": "FEEDBACK_SATISFIED",
  "version": 2,
  "visited_agent_ids": [1, 3],
  "visited_tool_ids": [2],
  "topic": { "id": 5, "name": "Order Status", "definition": "Questions about order tracking and delivery" },
  "subtopic": { "id": 12, "name": "Tracking", "definition": "Requests for tracking information" },
  "manual_resolution": null
}

Field	Type	Description
`most_common_channel`	string or null	Dominant channel
`most_common_language`	string or null	Dominant language
`most_common_origin`	string or null	Dominant origin
`most_common_product`	string or null	Dominant product
`started`	datetime	Conversation start time
`ended`	datetime	Conversation end time
`total_user_items`	integer	Total number of user messages
`num_matched_user_items`	integer	Number of recognized user messages
`recognition_rate`	float	Recognition rate (0.0–1.0)
`messages`	array	Full message history with detailed content (see https://cmcom.atlassian.net/wiki/spaces/KCENTER/pages/edit-v2/2925264909#Message-Types)
`resolution`	string	Resolution status
`resolution_reasoning`	string or null	AI reasoning for resolution
`summary`	string or null	AI-generated summary
`feedback`	string	User feedback rating
`version`	integer	Response format version (currently `2`)
`visited_agent_ids`	integer array	Agent IDs visited
`visited_tool_ids`	integer array	Tool IDs invoked
`topic`	object or null	Assigned topic
`subtopic`	object or null	Assigned subtopic
`manual_resolution`	object or null	Manual resolution override, if any

Error Responses

Status	Description
404	Conversation not found, or conversation has no items/metadata

Analytics v1 — Resources

These endpoints return the available agents and tools for an account. They are used to populate filter options in analytics UIs.

Note: For profiles, use the Core API profiles endpoint at /core/v1/accounts/{account_id}/profiles (permission: HALO.Core_Profiles_Read).

GET `/analytics/v1/accounts/{account_id}/agents`

Retrieve agents for an account, optionally filtered by profile.

Path Parameters

Parameter	Type	Required	Description
`account_id`	UUID	Yes	The account ID

Query Parameters

Parameter	Type	Required	Description
`profile_id`	integer	No	Filter agents by profile ID

Response `200 OK`

JSON

[
  { "id": 1, "name": "Sales Agent" },
  { "id": 2, "name": "Support Agent" }
]

Field	Type	Description
`id`	integer	Agent ID
`name`	string	Agent name

Error Responses

Status	Description
400	Invalid account ID
404	Account not found
500	Internal server error

GET `/analytics/v1/accounts/{account_id}/tools`

Retrieve tools for an account, optionally filtered by profile.

Permission: HALO.Analytics_API

Path Parameters

Parameter	Type	Required	Description
`account_id`	UUID	Yes	The account ID

Query Parameters

Parameter	Type	Required	Description
`profile_id`	integer	No	Filter tools by profile ID

Response `200 OK`

JSON

[
  { "id": 1, "name": "Knowledge Search", "description": "Searches the knowledge base" },
  { "id": 2, "name": "Order Lookup", "description": "Looks up order status" }
]

Field	Type	Description
`id`	integer	Tool ID
`name`	string	Tool name
`description`	string	Tool description

Error Responses

Status	Description
400	Invalid account ID
404	Account not found
500	Internal server error

Content Types

Messages

Messages in the conversation list endpoint (ConversationItemSummary) are a simplified view:

Field	Type	Description
`id`	integer	Item ID
`profile_id`	integer or null	Profile ID
`interaction_id`	UUID or null	Interaction ID
`role`	string or null	Message role (e.g. `user`, `halo`, `assistant`)
`name`	string or null	Sender name
`text_content`	string or null	Plain text content of the message
`match`	boolean or null	Whether the message was recognized
`language`	string or null	Detected language
`created`	datetime or null	Timestamp
`image_carousel`	object or null	Carousel content (only present if the message contains one)
`media`	array or null	Media attachments (images, files)
`buttons`	array or null	Conversation option buttons
`show_feedback`	string or null	Feedback prompt text
`json_content`	array or null	Structured JSON content

Messages in the single conversation detail endpoint use the full Message type, which is a tagged union with the following variants: USER, HALO, ASSISTANT, CUSTOMER_SERVICE_AGENT, CUSTOMER_SERVICE_AGENT_INSTRUCTION, and EXTERNAL_HANDOVER. Each variant contains content parts that can be of type text, json, media, buttons, image_carousel, or show_feedback.

Topics

Topics represent the subject matter of a conversation, classified automatically by AI analysis of the conversation content. They form the parent level of a two-level taxonomy representing broad subject areas (e.g. "Billing", "Technical Support", "Account Management").

Field	Type	Description
`id`	integer	Topic ID
`name`	string	Human-readable topic name
`definition`	string	Description of what the topic covers

Use the topic_ids query parameter in the conversations list endpoint to filter by topic. A value of -1 matches conversations where topic classification is still pending.

Subtopics

Subtopics are child categories within a topic, providing more granular classification. They represent specific subjects within a broader topic area (e.g. under "Billing": "Invoice Dispute", "Payment Method", "Refund Request"). Every classified conversation has a subtopic; the parent topic is derived from the subtopic's position in the taxonomy.

Field	Type	Description
`id`	integer	Subtopic ID
`name`	string	Human-readable subtopic name
`definition`	string	Description of what the subtopic covers

Resolutions

Resolution indicates the outcome of a conversation. It is determined using the following priority order:

External handover — if the conversation was handed over to a human agent, it is automatically classified as RESOLUTION_HANDOVER.
Manual resolution — if an analyst has manually overridden the resolution, the manual label takes precedence.
AI resolution — if neither of the above apply, the AI-determined resolution is used.
Pending — if none of the above are available, the resolution defaults to RESOLUTION_PENDING.

Value	Description
`RESOLUTION_SUCCESSFUL`	The user's question or request was resolved successfully
`RESOLUTION_HANDOVER`	The conversation was transferred to a human agent
`RESOLUTION_UNSUCCESSFUL`	The conversation ended without the user's issue being resolved
`RESOLUTION_UNDETERMINED`	The AI could not confidently determine the outcome
`RESOLUTION_PENDING`	Resolution has not yet been classified (e.g. conversation is still ongoing or classification is pending)

The resolution_reasoning field (string or null) contains the AI's explanation of why it assigned a particular resolution label. This is only present when the resolution was determined by AI.

Manual Resolutions

A manual resolution is an override applied by an analyst or reviewer to correct or adjust the AI-assigned resolution. When a manual resolution is active, it takes precedence over the AI resolution in the priority chain described above.

Field	Type	Description
`id`	integer	Manual resolution record ID
`profile_id`	integer or null	Profile ID the resolution was applied to
`conversation_id`	UUID	Conversation this resolution applies to
`user_name`	string or null	Name of the user who applied the override
`original_label`	string or null	The resolution label before the override (null if no prior label existed)
`new_label`	string	The new resolution label applied by the reviewer
`reasoning`	string or null	Free-text explanation of why the resolution was changed
`is_active`	boolean	Whether this manual resolution is currently active
`created`	datetime	When the manual resolution was created
`user_email`	string	Email of the user who applied the override

original_label can be any value from the https://cmcom.atlassian.net/wiki/spaces/KCENTER/pages/edit-v2/2925264909#Resolutions section (or null if no prior label existed). new_label is restricted to:

RESOLUTION_SUCCESSFUL
RESOLUTION_UNSUCCESSFUL

Feedback

Feedback represents the end-user's satisfaction rating for a conversation, mapped from a 1–5 numeric score.

Value	Numeric Score	Description
`FEEDBACK_VERY_SATISFIED`	5	Very satisfied
`FEEDBACK_SATISFIED`	4	Satisfied
`FEEDBACK_NEUTRAL`	3	Neutral
`FEEDBACK_UNSATISFIED`	2	Unsatisfied
`FEEDBACK_VERY_UNSATISFIED`	1	Very unsatisfied
`FEEDBACK_NOT_GIVEN`	—	No feedback provided

Message Types

The single conversation detail endpoint returns full message objects. Each message is a tagged union with a type field:

Type	Description
`USER`	Message from the end user
`HALO`	AI assistant response with full reasoning and metadata
`ASSISTANT`	Generic assistant message
`CUSTOMER_SERVICE_AGENT`	Message from a human customer service agent
`CUSTOMER_SERVICE_AGENT_INSTRUCTION`	Instruction message from a customer service agent
`EXTERNAL_HANDOVER`	Handover event with transfer details

All message types share a common base containing content (array of content parts), timestamp, is_message_before_halo, and interaction_id.

Analytics API Reference

Authentication

Base URL

Breaking Changes

Analytics v1

GET /analytics/v1/accounts/{account_id}/metrics

Path Parameters

Query Parameters

Validation

Response 200 OK

Error Responses

Analytics v2

GET /analytics/v2/accounts/{account_id}/conversations

Path Parameters

Query Parameters

Date Range Behavior

Pagination

Response 200 OK

ConversationOverview Object

GET /analytics/v2/accounts/{account_id}/conversations/{conversation_id}

Path Parameters

Response 200 OK

Error Responses

Analytics v1 — Resources

GET /analytics/v1/accounts/{account_id}/agents

Path Parameters

Query Parameters

Response 200 OK

Error Responses

GET /analytics/v1/accounts/{account_id}/tools

Path Parameters

Query Parameters

Response 200 OK

Error Responses

Content Types

Messages

Topics

Subtopics

Resolutions

Manual Resolutions

Feedback

Message Types

GET `/analytics/v1/accounts/{account_id}/metrics`

Response `200 OK`

GET `/analytics/v2/accounts/{account_id}/conversations`

Response `200 OK`

GET `/analytics/v2/accounts/{account_id}/conversations/{conversation_id}`

Response `200 OK`

GET `/analytics/v1/accounts/{account_id}/agents`

Response `200 OK`

GET `/analytics/v1/accounts/{account_id}/tools`

Response `200 OK`
